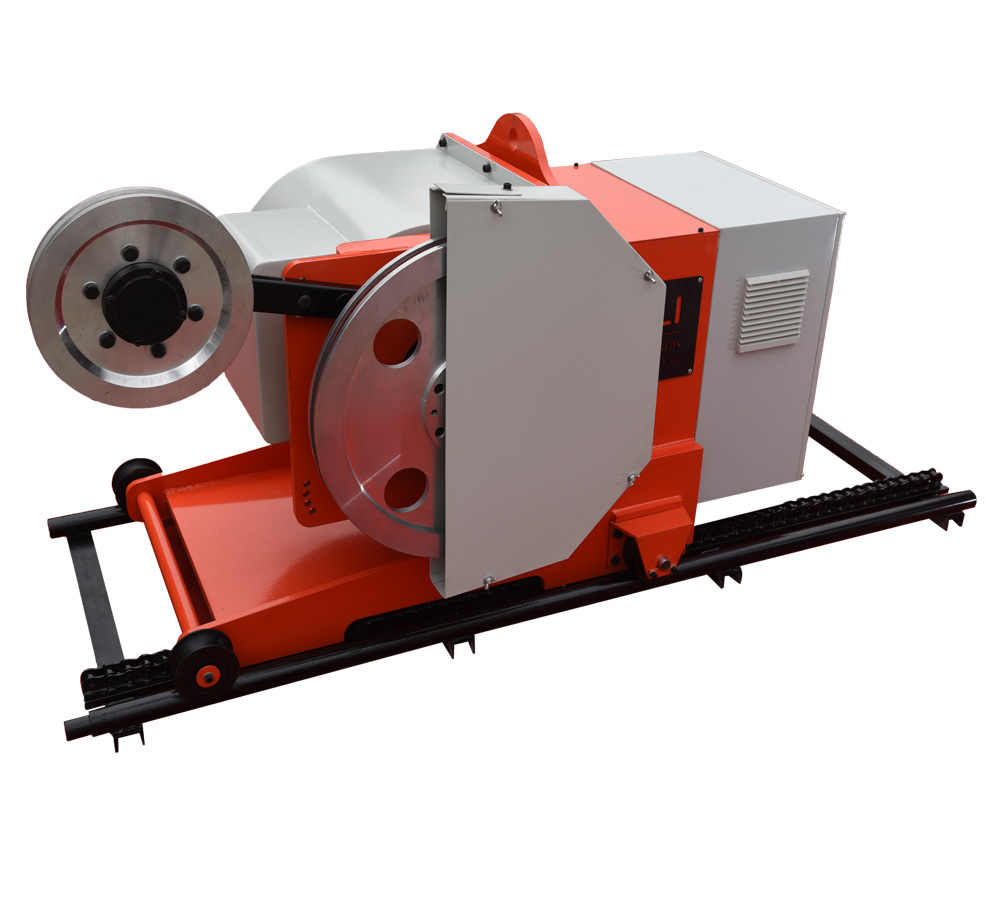

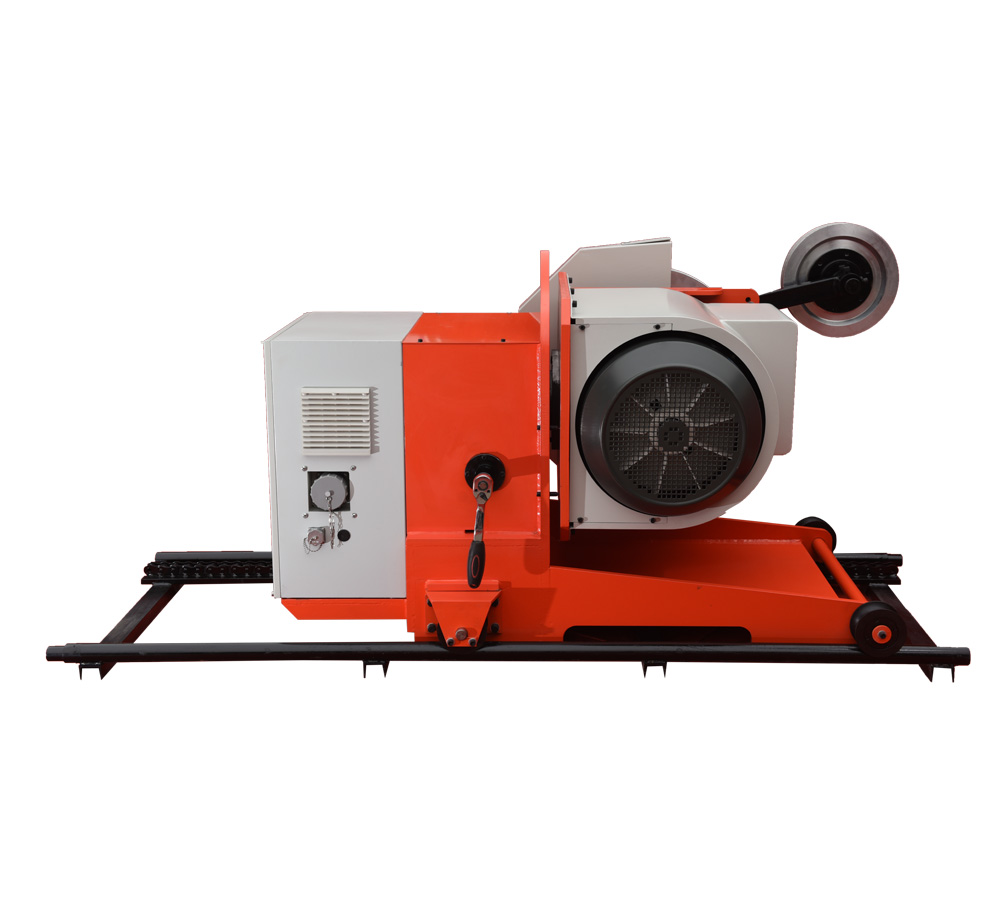

Wire saw machine for block squaring
Wire saw machine used for block squaring.
Share:
Specifications :
| Model | LLXB-22 |
| Main motor power | 22kw |
| Main pulley dia | 550mm |
| Wire saw speed | 27m/s |
| Walking motor power | 0.4kw |
| Walking speed of machine | 0-45m/s |
| Allowed working temperature | -15℃- 40℃ |
| Dimension LxWxH(mm) | 1400x817x916 |
| Net Weight | 880kg |
Features :
Double frequency converters and PLC ensure automaticlly adjustment of moving speed, in order to keep the wire be in the best working condition;
Romote control applied to adjust head moving speed, start and stop, easily operating for the operator;
Soft start avoids the risk of wire damage by starting with load;
The head can be rotated by 180〬, various of cutting angle can be applied;
Small size and weight, easy to move;
Thickened steel ensures strong machine, can work in hard conditions with lower failure rate.
