Specifications :
| Model | LLKS-55A | LLKS-75A |
| Main motor power | 55kw | 75kw |
| Main pulley dia | 800mm | 800mm |
| Wire saw speed | 0-37m/s | 0-37m/s |
| Walking motor power | 1.5kw | 1.5kw |
| Leteral moving distance | 400mm | 400mm |
| Max cutting distance | 1750mm | 1750mm |
| Rotation angel | 270 | 270 |
| Walking speed of machine | 0-67m/s | 0-67m/s |
| Allowed working temperature | -15℃- 40℃ | -15℃- 40℃ |
| Dimension LxWxH(mm) | 2156x1468x1620 | 2156x1468x1620 |
| Net Weight | 3203kg | 3559kg |
Features :
Double frequency converters and PLC ensure automaticlly adjustment of moving speed, in order to keep the wire be in the best working condition;
No need to distinguish or chang the power phase, the machine has over-load protection, lacking phase protection and terminal limit protection;
The lateral moving and the rotation of head are controlled by electric motor, Photoelectric proximity switch installed on the head for limitation protection;

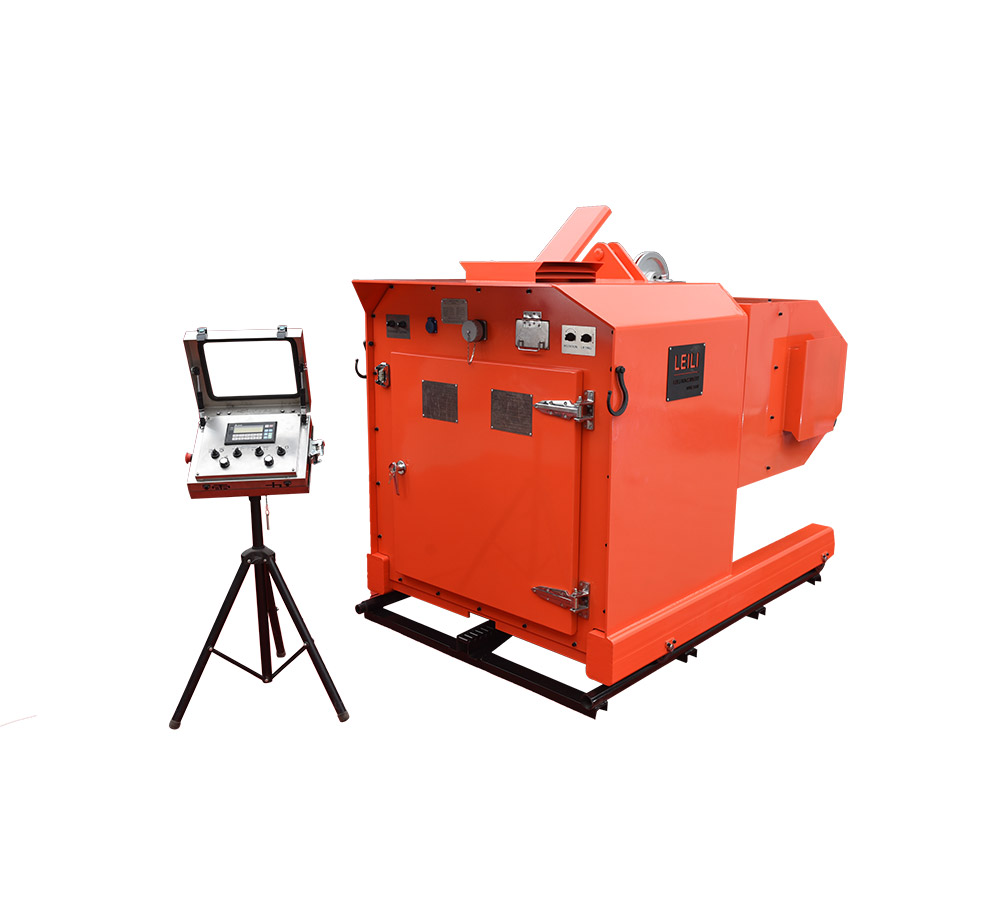

Control platform display the key parameters such as the main motor set current, rotation speed of main motor, etc;
Two operating mode, manul and automatic, can be shifted. At the same time, remote control device can be selected, which can be used for remote control operation, and one person can operate multiple devices.
